|Model Number:||SJSZ80/156||Automatic grade:||Fully automatic|
|Port:||Qingdao||Product type:||Plastic board|
PVC Plastic Board Profile Sheet Machine , Plastic PVC Foam Board Extrusion line
1. Qingdao Aorui Plastic Machinery is the only professional supplier of PVC Foam Board Machine. PVC Foam Board that produced by PVC Foam Board Machine could be widely used in building, kithchen, furniture, advertisement, office etc.. PVC Foam Board provided by Qingdao Aorui are environmental friendly, recyclable for almost 100%, incombustible and safe for using & drilling, sawing, nail, planning, bonding can be conducted like timber material.

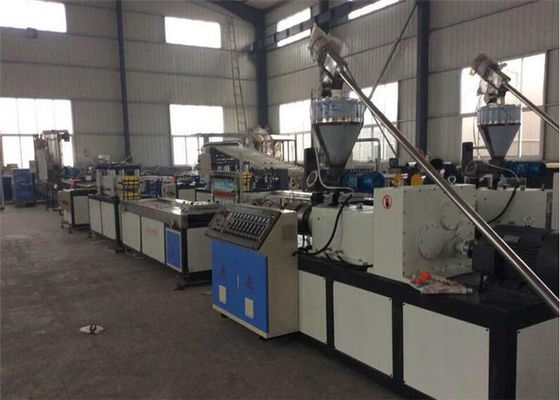

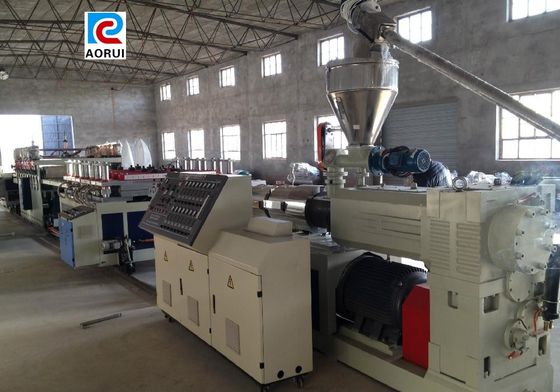

2. This machine is mainly used to produce PVC door profiles, PVC trunking profiles, PVC ceiling profiles, PVC panel, PVC board and so on. This PVC profile production line adopts advanced design concept to ensure the efficient extrusion of PVC material, combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.

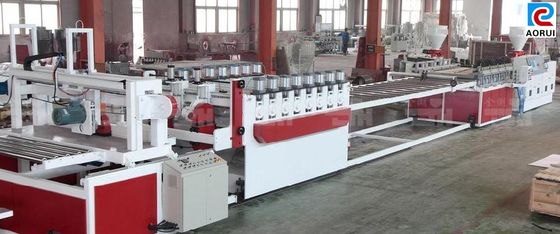

1. PVC Crust/Celuka Foam Board Production Line is our latest updated products. It's continuously improved on the basis of requirements and feedbacks from our customers and combined with foreign advanced technology. It shows superior performance, high reliability and practicality with its compact structure, advanced configuration and outstanding output in the production of 3-30mm thick, high-qualified PVC foam board.
2. Main Features
1> With Euro advanced technology for stable and precision.
2> Vacuum tank easy to be adjusted in 3D direction.
3> Haul off is with four cylinder clamping for equal pressing.
4> Cutter with many types: up and down; traversal or multi movement.
|The main technical parameters|
|Screw volume (mm)||2||2||2|
|To screw||The outward differences Screw rotation direction|
|Screw Rotational Speed(r/min)||1-37||1-32||1-34.7|
|Screw effective working length (mm)||985||1070||1440|
|The main motor power (kw)||15||18.5||37|
|Barrel heating power (kw)||12||18||24|
|Production capacity (kg/h)||95||80-120||250-300|
|High machines Center(mm)||1000||1000||1000|
