|Place of original:||Shandong , China||Port:||Qingdao|
|Automatic grade:||Fully automatic||Condition:||New|
|Screw&Barrel Material:||38Cr MOAIA||Type of extruder:||Twin screw extruder|
|Nazwa handlowa:||Aorui||Certificate:||CE ISO9001|
Twin Screw PVC Dual Line Rigid Pipe Making Machine , PVC Conical Twin Screw Extruder Pipe Machine
1. First class pipe die was designed with many years experience. Perfect twin pipe vacuum sizing systerm. Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device. Optional length set and accurate adaption stacker.

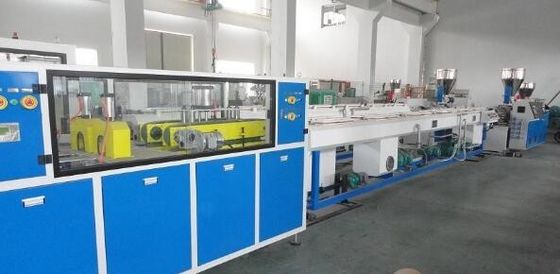

2. The unit consists of conical double/ parallel double extruder, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer inkjet printer, etc. to achieve the production and manufacture of high-grade tubing.
1. Pipe performance: withstand voltage, insulation, heat insulation, smooth inside and outside surface, convenient and smooth threading. We design the special extrusion line which can satisfy the wiring harness casing tube production of different material quality and specifications, through the flexible matching of internal pressure forming and vacuum sizing process, tube features excellent apparent effect and dimension accuracy.
2. 1) Double screw extruder
adopts long L/D, high efficiency screw, high extrusion capacity, uniformed plasticization. Extruder and haul off machine motors adopt imported AC/DC inverter as speed regulators.

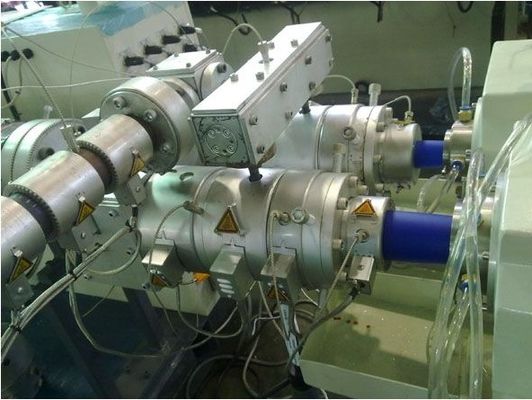

2) Extrusion die head
is spiral type, good calibrating makes good quality pipe production.
Inner heating system, high efficient, easy extrusion. Bronze calibrators can make the pipes fast calibrated and cooled.
3) Vacuum calibrating tank and water spraying cooling tank
adopts advanced water circulation, high pressure cooling system, installed with vacuum degree adjusting device and automatic water temperature and water level controlling system.
4) Haul off machine
adopts caterpillar type, which includes two-claw types, three-claw types, four-claw types, six-claw types, eight -claw types, ten-claw types, twelve-claw types etc, suitable for different sizes of pipes.
5) Cutting machine
Non-scraped cutting, saw cutting or planetary cutting can be applied, accurate cutting, reliable property, high efficiency. Meter-counting device is also installed.
Main technical parameters
Q1:Are you a trading company or a manufactory? A1:We are a manufactory,so we can give u the best service .
Q2:What's your guarantee or the warranty of the quality if we buy your machines? A2:We offer you high quality machines with 1 years guarantee . we will give you spare part free in 1 years
Q3:When can I get my machine after I paid? A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives? A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5:How about the spare parts? A5:After we deal down all the things , we will offer you a spare parts list for your reference.
