High Quality PE Pipe Extrusion Making Machine , PE Water Pipe Extruder Machine
1. This PE Drainage Pipe Extrusion Line can be used in PE Large Diameter Gas and Water Pipe which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on.
So, this pipe production line is a preferred gas and water pipe for ductwork system between city and its suburb. Large diameter HDPE pipes start to play very important role in the city water and gas supply systems.
2. Capacity: single screw extruder, suitable to process PE resin with high capacity, max 1000kg/h. Diameter: from 16 to 800mm. Adopts reasonable design, absorbing safe producing technology, acquiring CE&ISO certificate
1. Flow chart of the PE pipe line
Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder

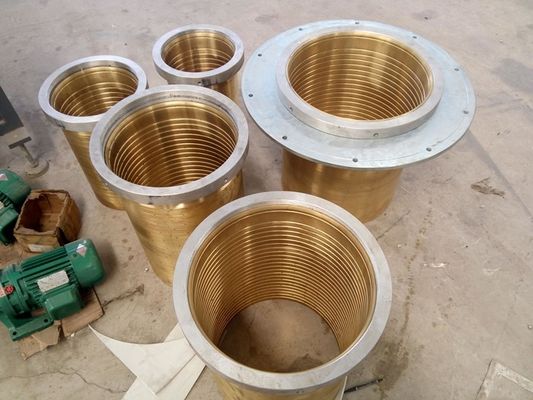

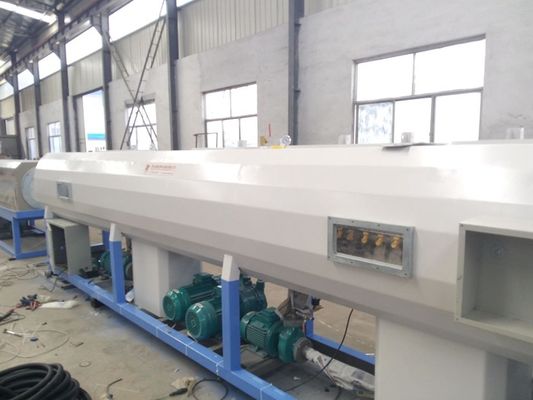

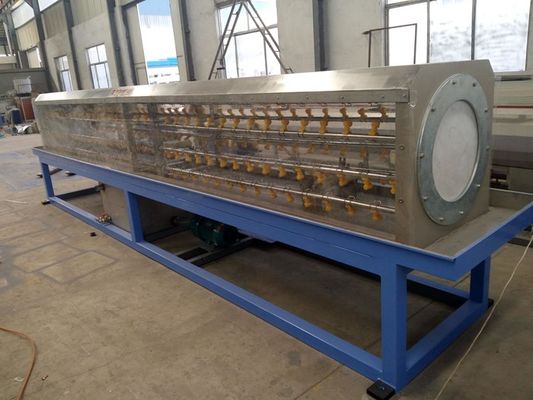

→ color code extruder → mould and calibrator → vacuum forming machine → cooling tank
→ haul-off machine → cutting machine → discharging rack
2. PE-RT,PP-R, PP, PB, PVDF, PA, ABA, PEXB, TPU polyolefine pipe high-speed & high-efficiency extrusion line is developed based on the years of experience of design & assembly and imported advanced technique & process. Starting with extruder, all the automatic machines and downstream equipments are wholly automatically controlled during the entire progress from charging to discharging.
Main Technical Parameters
|Model ||Pipe diameter mm||Extruder ||Max. output (kg/h)||Total installed power (KW)||Lenght of production line(m)|
About Our Company:
Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
