High Performance WPC / PVC Foam Board Machine Double Screw Extruder

Chiny High Performance WPC / PVC Foam Board Machine Double Screw Extruder dostawca
High Performance WPC / PVC Foam Board Machine Double Screw Extruder dostawca High Performance WPC / PVC Foam Board Machine Double Screw Extruder dostawca High Performance WPC / PVC Foam Board Machine Double Screw Extruder dostawca

Duży Obraz :  High Performance WPC / PVC Foam Board Machine Double Screw Extruder

Szczegóły Produktu:

Place of Origin: China
Nazwa handlowa: AORUI
Orzecznictwo: CE UL CSA ISO9001
Model Number: SJSZ65/132

Zapłata:

Minimum Order Quantity: One set
Cena: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 35 days
Payment Terms: 30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability: 10 Sets per month
Contact Now
Szczegółowy opis produktu
Plastic Processed: PVC Certificate: CE ISO9001
After-sales service: Engineers availiable to service Warranty: 12 months
Voltage: 380V 50HZ Model Number: SJSZ65/132
Nazwa handlowa: Aorui Dimension: According to model

PVC WPC Crust Foam Board Extrusion Line , High Performance PVC WPC Foam Board Machine





Quick detail:



Double-Screw Extruder type SJSZ65/132
Item Description Unit SJSZ65/132
1 Output Capacity Kg/h Max. 250
2 Number of the Screws 2
3 Diameter of the Screw mm 65/132
4 Rotating Direction of the Screws Forth & Reverse
5 Rotation Speed of the Screw r/min 1-34.7
6 Available Working Length of the Screws mm 1430
7 Main Motor Power Kw 37
8 Speed Adjusting Mode frequency conversion adjustable, Invertor from OMRON
9 Gear reducer Rigid-gear surface low noise design
10 Heating Capacity of the Screw barrel Kw 24 ( casting-aluminium electric-thermal elements )
11 Material of the Screws and the barrel 38CrMoA1
12 Nitriding Depth of the Screws and the barrel mm 0.5~0.7
13 Nitriding rigidity of the Screws and the barrel HRC 50~55
14 Cooling Mode of the Screw barrel by air cooling
15 Temperature Adjustment of the Screws By Screw-core Temperature Adjusting Device









Description:



 PVC foam board extrusion line Production Processing
1. Material Mixing: PVC + additives or PVC + wood powder + additives
2. Extrusion Processing: mixed material going through the extruder, calibration unit,
cooling bracket and cutter

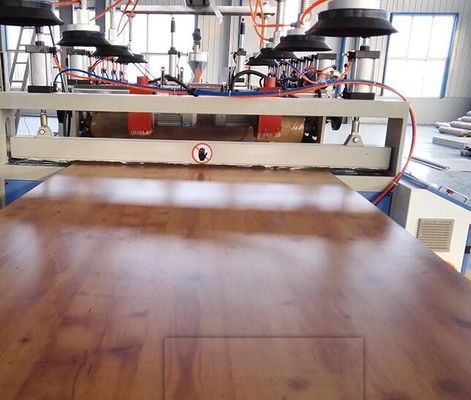

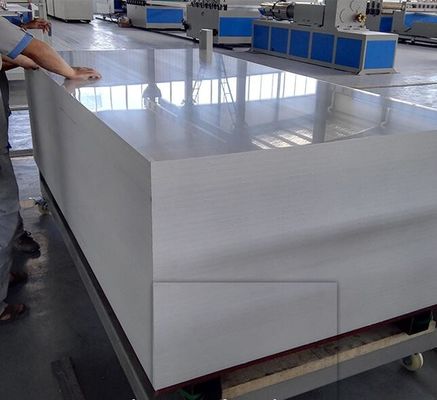

3. Final Products: PVC foam board/sheet

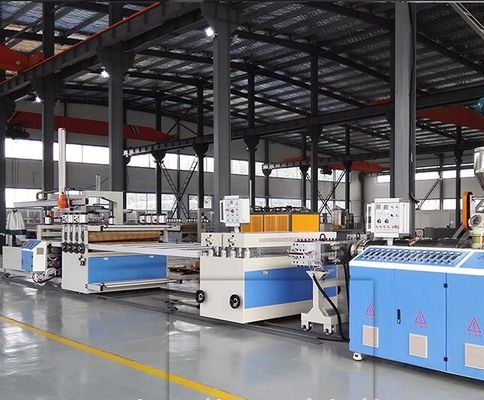

High Quality PVC/PE/PP WPC Foam Hollow Board Extrusion Line

The extruder of this extrusion line is the special designed extruder,this extruder is equipped with the temperature controlling gauges which have the advantages of high precision temperature controlling,easy and reliable operation.



The vacuum calibration table equipped with the strong cooling device which ensure the cooling effect.Caterpillar type haul off unit,equipped with the precise speed reduction motor and inverter,has the advantages of reasonable structure,powerful and stable haul off force.The cutter has the reliable and accurate cutting effect.



The stacker has the movable stacking trolley and special made rubber protection layer to prevent the product from being scrathed.The downstream equipment of this extrusion line uses the program-mable computer or domestic made controlling system for stable and reliable operation.











Main tech parameters of PVC foam board making machine



Model GYF600 GYF800 GYF1000 GYF1250
Max.width of product(mm) 600 800 1000 1250
Extruder model GSZ65/132 GSZ80/156 GSZ92/188 GSZ92/188
Max.extrusion capacity(kg/h) 250 350 450 550
Extruder power(kw) 37 55 110 132
Cooling water(m3/h) 12 13 15 18
Compressed air(m3/min) 0.5 0.6 0.8 1







Application of pvc foam board production line



Transportation:such as steamship, aeroplane, carriage, traine compartment, roof shed, case core layer, inner upholster, etc.


Architecture:such as building wall board, decoration board, housing, office, public building interlayer, commercial decoration shelf, non-dust room board, ceiling plate, etc.


Advertisement:such as screen printing, computer lettering, ad board, etc.


Industry:such as chemical industry antisepticizing project, thermoforming, for refrigeratroy, for temperature keeping, for environment protection, etc.


Other applications:such as mould plate, sports equipment, breeding equipment, seashore wet-proof facility, water-fast material, art material, various interlayer, etc.







Technical and after-sales service:


The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
