|Place of original:||Shandong , China||Application:||Corrugated pipe|
|Certificate:||CE ISO9001||Temperature control:||Omron|
|Frequency control:||ABB||Nazwa handlowa:||Aorui|
|Warranty time:||One year||Voltage:||380V 50HZ|

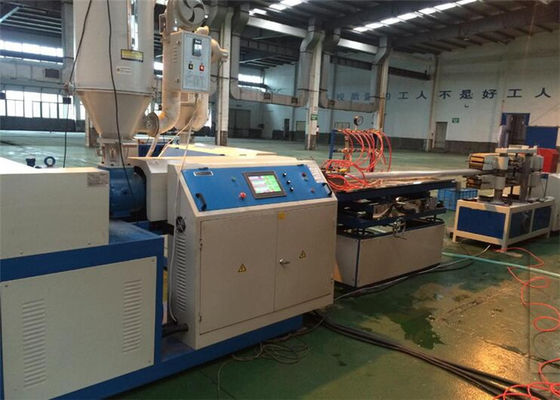

Corrugated Pipe Extrusion Line , Large Diameter Corrugated Pipe Extrusion Machine

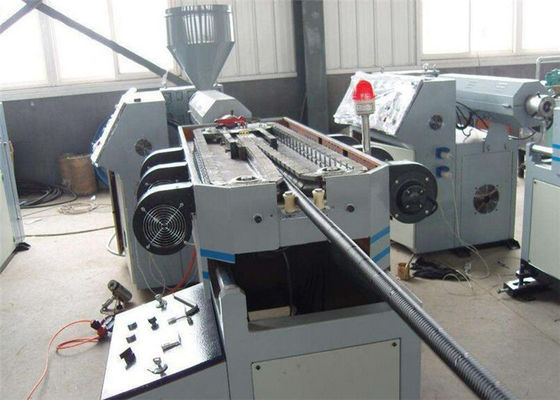

Corrugated Conduit Pipe Production Line
1,SJSZ Conical twin screw extruder: using the high efficient conical twin screws, specially designed for PVC power to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality pipe extrusion.
2,Mould: spiral type die head can not only ensure high speed extrusion, but also avoid the thermal decomposition of amorphous plastics and get high quality pipes. There is heating control system inside of the mould, high efficient, easy to extrude. Bronze calibrators can make the pipes fast calibrated and cooled.
3,Spraying and cooling tanks: Rapid vacuum calibrating system allows the hot extruded pipes to be cooled in a very short time and obtain the final pipe diameter. Automatic temperature control system, pressure regulator, and vacuum control valve greatly enhance the pipe sizing and cooling performance as well as the production speed.
1. This plastic corrugated pipe production line can be used to produce single-wall or one wall corrugated pipes of PE,PP,PVC,PA continuously, Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc. They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.
2. Plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall. These corrugated pipes are especially used as wires of the up-market cars.
3. Double wall corrugated pipe material is PE, inner layer smooth, outer layer trapezoidal corrugated-size, hollow wall between inner layer and outer layer. The special design of pipe wall structure makes the pipes have many advantages such as: High ring stiffness, light weight, high pressure, good toughness, corrosion resistance, good wear resistance, construction convenient, low installation cost, long service life and so on.
The main technique parameter :
|Pipe diameter range(mm)||4.5-9||9-32||32-50||63-110|
|Main machine model||GB-SJ45||GB-SJ50||GB-SJ65||GB-SJ75|
|Main machine l/d||28:1||28:1||28:1||28:1|
|Production capacity kg/h||10||40||80||150|
|Main motor capacity kw||7.5||11||18.5||37|
|Molding machine capacity kw||1.5||1.5||2.2||6|
|Pair of mould||45||45||60||72|
|Cooling mode||Water cooling or fan cooling or both type|
|Metering mode||inducting mode|
|Coiling machine mode||Automatic or Manually-operated|
Double wall corrugated pipe is widely used in areas such as the transformation of municipal engineering, construction, industrial and agricultural drainage, agricultural water-saving irrigation and sewage treatment works and other fields. Double wall corrugated pipe is the best product instead of traditional cement pipe, cast iron pipe and other materials pipe.
Q1:Are you a trading company or a manufactory? A1:We are a manufactory,so we can give u the best service .
Q2:What's your guarantee or the warranty of the quality if we buy your machines? A2:We offer you high quality machines with 1 years guarantee . we will give you spare part free in 1 years
Q3:When can I get my machine after I paid? A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives? A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5:How about the spare parts? A5:After we deal down all the things , we will offer you a spare parts list for your reference.
