Automatic PVC Plastic Pipe Extrusion Line Twin Screw Extruder CE / ISO9001

Chiny Automatic PVC Plastic Pipe Extrusion Line Twin Screw Extruder CE / ISO9001 dostawca
Automatic PVC Plastic Pipe Extrusion Line Twin Screw Extruder CE / ISO9001 dostawca Automatic PVC Plastic Pipe Extrusion Line Twin Screw Extruder CE / ISO9001 dostawca Automatic PVC Plastic Pipe Extrusion Line Twin Screw Extruder CE / ISO9001 dostawca

Duży Obraz :  Automatic PVC Plastic Pipe Extrusion Line Twin Screw Extruder CE / ISO9001

Szczegóły Produktu:

Place of Origin: ShanDong China
Nazwa handlowa: AORUI
Orzecznictwo: CE & ISO9001
Model Number: SJSZ51/105 SJSZ65/132

Zapłata:

Minimum Order Quantity: 1 set
Cena: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter
Contact Now
Szczegółowy opis produktu
Model Number: SJSZ65/132 Condition: New
Screw Design: Double screw Certificate: CE ISO9001
After-sales service: Engineers availiable to service Warranty: 12 months
Inverter: ABB Machine color: Bule or according to customer's requirement

PVC Double Screw Pipe Extrusion Line , PVC Pipe Extruder Production Line


Quick detail

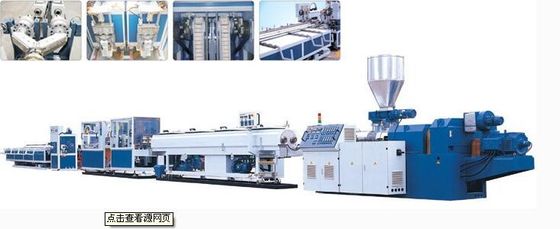

1. 1)This PVC double pipe production line mainly includes: Extruder, mould, vacuum calibration tank, spray cooling tank, haul-off, cutter, stacker.
2)It is used for water supply, drainage, air transfering, construction, etc
3)Their wall thickness is different according to different pressure standard.



2. PVC two pipes extrusion line include KBL55/113 conical twin-screw extruder, mould, vacuum forming tank, double haul off and cutting machine, stacker. Material is PVC, best production range is Φ 16-Φ 63mm. It has the advantage of high capacity, simple operation, high degree automation, automatic fault alarm and simple maintenance, long working time, adopts ABB inverter and RKC temperature controller.






Description:

1. PVC PE PP PPR Plastic Pipe Extrusion Extruder Machine is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. as well as PVC pipe material of all sorts of pipe caliber and wall thickness.



2. Process Flow:

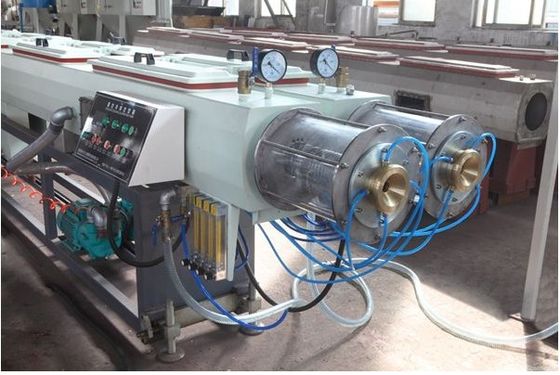

Raw material+additive→mixing→conveying feeding→force feeding→conical double screw extruder→one mold two pipes mould→calibrator→double spray vacuum cablibration tank→ink printer→double belt haul-off→double uplift cutter→double pipe rack→finished product inspecting and packing.

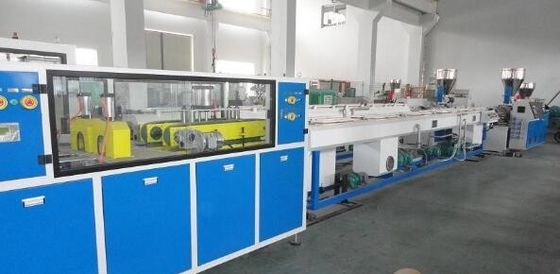

3. PVC Pipe machine is mainly used in the manufacture of the plastic PVC pipes with various diameters (from 16-630mm)and wall thickness in the aspects such as the agricultural and constructional plumbing, cable laying etc. It is composed of the conical twin-screw extruder, vacuum calibrating and cooling tank, haul off unit, cut off unit and stacker. The unit is of the reliable performance and high production efficiency.








Main Technical Parameters:

model SJSZ51 SJSZ55 SJSZ65 SJSZ80 SJSZ92
Screw diameter 51/105 55/110 65/132 80/156 92/188
Screw speed 1-40 1-38 1-38 1-37 1-36
Center height 1050 1150 1050 1050 1100
The motor power 18.5 22 37 55 90
Output(KG/H) 80-100 100-150 150-250 250-380 380-700
Net Weight(KG) 3000 3500 4000 5500 8000
L*W*H(m) 3.6*1.1*2.1 3.6*1.1*2.1 4.2*1.5*2.4 4.7*1.5*2.4 6*1.6*2.5





Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time

Automatic PVC Plastic Pipe Extrusion Line Twin Screw Extruder CE / ISO9001Automatic PVC Plastic Pipe Extrusion Line Twin Screw Extruder CE / ISO9001
