Plastic PVC Pipe Conical Twin Screw Extruder PVC Pipe Extrusion Line , High Output PVC Twin Pipe Machines
1. SJSZ series conical twin screw extruder mainly composed of barrel screw, gear transmission system, quantitative feeding, vacuum exhaust, heating, cooling and electrical control components Etc. Producing kinds of PVC plastics pipes, profiles, sheets, plates, boards, bars, palletizing and granulation.
2. First class pipe die was designed with many years experience. Perfect twin pipe vacuum sizing systerm. Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device. Optional length set and accurate adaption stacker.
PVC wire pipe machine Production Line details:
1.AC motor,ABB frequency speed governor, Japanese RKC temperature controller, Schneider contactor.
2.Screw Nitriding treatment,hardness HV740-940,surface roughness Ra≤ 0.8um.
3.Barrel air-cooled cooling method, nitriding depth of 0.5- 0.7mm, hardness of HV860 or more, the surface roughness Ra ≤ 1.6um.

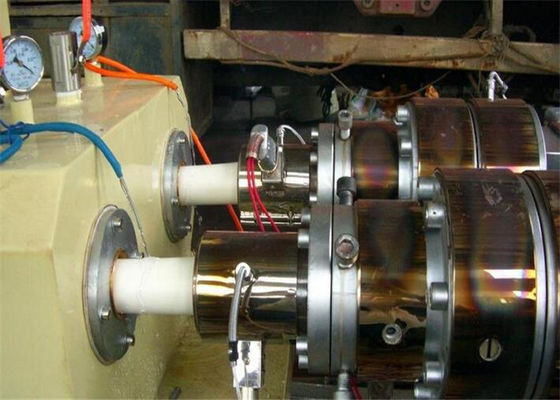

4.Die head material,High quality steel by quenching and tempering.Structure,Where contact with the materials hard chrome plating.Bolts level,12.9 high strength bolts.
5.Two Vacuum calibration tank material:Stainless steel.
6.Double Caterpillar adjusting method: pneumatic compress device.
7.Double cutter: Most cutting times,20 times/min;With strong waste clean device. Equipped with a meter installation, meter size is accurate.
8.Double stacker: Pneumatic flip, soft rubber, to prevent pipe surface scratch.
9.All electrical parts adopt world famous brand product.

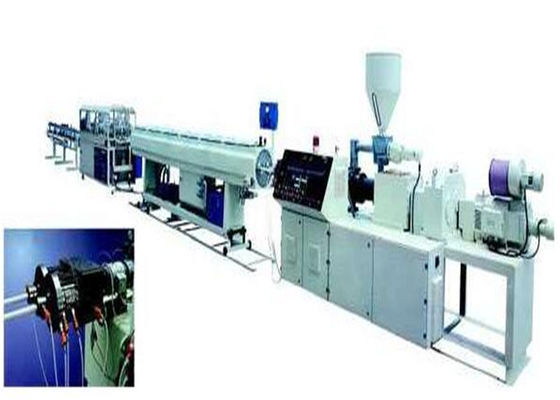

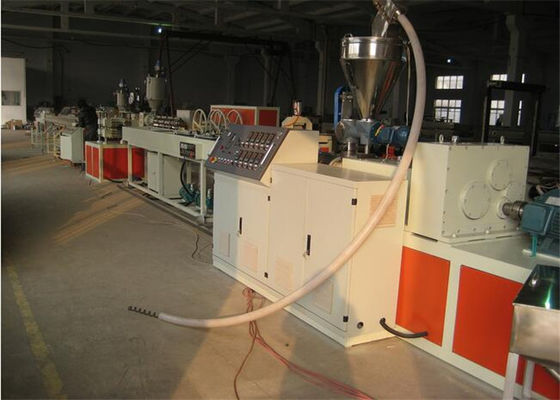

Our PVC pipe extrusion machine has features of low energy consumption, high output, stable running etc.The standard PVC pipe extrusion machine include: material feeder, SJSZ series conic twin screw extruder, mould, vacuum calibration tank, spray cooling tank(for big pipe), haul-off, cutter, stacker/automatic belling machine.
Main Technical Parameters:
|The motor power
Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
