|Nazwa handlowa:||AORUI||Place of original:||Shandong , China|
|Screw Design:||Single screw||Automatic grade:||Fully automatic|
|Voltage:||380V 50HZ||Orzecznictwo:||CE & ISO9001|

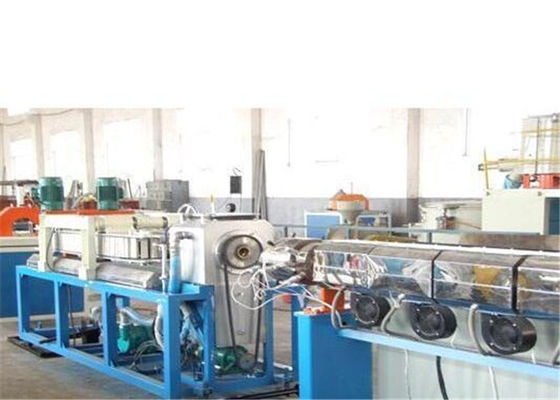

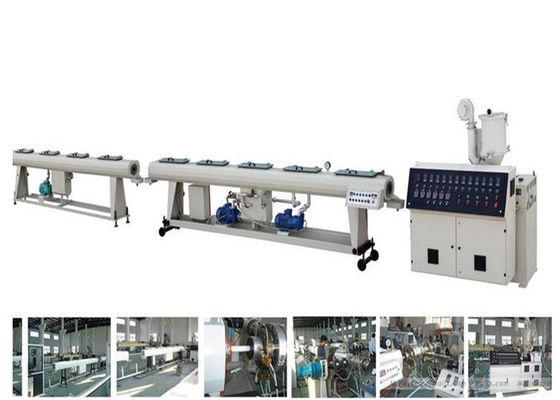

PE Corrugated Pipe Single Screw Making Machine , PE Corrugated Eletric Conduit Pipe production line
1. Process flow of the PE Corrugated Pipe Machine:
Dryness loader→Single screw extruder→Die→Forming moulds→Water tank(optional)→ cutter(optional)→stacker
2. Breif introduction
1.According to the speed and pipe diameter to choose screw.
2.Stable extrusion and forming
3.PLC control and Siemens inverter and motor(optional)
1. PE series plastic pipe material production line is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. This PE Drainage Pipe Extrusion Line can be used in PE Large Diameter Gas and Water Pipe which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on.
2. Features of PE/PP Single Wall Corrugated Pipe Production Line:
1) Adopt Electric-magnetic heater which can save 40% to 60% electric energy.
2) All electric parts (breaker/relay/ inverter) are SIEMENS/SCHNEIDER/OMRON
3) PLC control and simple operation
4) the forming machine has 38 pairs to 72 pairs forming block.
5) Production speed is 15m/min to 25m/min.
Main Technical Parameter
Technical Parameter of PE/PP/PVC Single Wall Corrugated Pipe Machine:
|Model||Pipe Diameter (mm)||Motor Power||Speed (m/min)||Max .Output (kg/h)||Total Power|
The single wall corrugated pipe are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.
The PE/PP/PVC single corrugated pipe is mainly used in the golf course, playgrounds as light load of drainage, floods; Interior decoration cable casing; Automotive wire casing; The washing machine, air conditioner drain; Prestressed concrete special pipe, etc.
