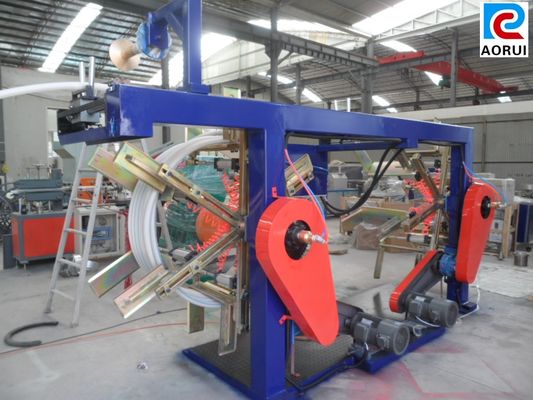

Plastics Extrusion Machinery For Double Screw PVC Fiber Reinforced Soft Pipe

Chiny Plastics Extrusion Machinery For Double Screw PVC Fiber Reinforced Soft Pipe dostawca

Duży Obraz :  Plastics Extrusion Machinery For Double Screw PVC Fiber Reinforced Soft Pipe

Szczegóły Produktu:

Place of Origin: ShanDong China
Nazwa handlowa: AORUI
Orzecznictwo: CE UL CSA
Model Number: SJSZ65

Zapłata:

Minimum Order Quantity: 1 set
Cena: Negotiable
Packaging Details: Fumigationwood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per month
Contact Now
Szczegółowy opis produktu
Plastic Processed: PVC Pipe Size(mm): 8-50
Type: Plastic Production Line, Plastic Extrusion Line Screw Design: double screw
Weight: depends Place of Origin: Shandong , China (Mainland)
Total Power (kw): 26-36

Double Screw PVC Fiber Reinforced Soft Pipe Extrusion Line , PVC Pipe For Irrigation







Quick detail:



1 . The main machine adopts screw specially used for polyolefin.

2 . ISO&CE standard

3 . test before delivery



Description:



The working process of PVC conduit pipe making machine:



The whole equipment configuration: Mono-screw lining extrusion system, cooling device, haul-off, braiding machine, mono-screw outer extrusion system, cooling device, automatic stacking system.



This line is the newly-developed product of our company, which is mainly used to produce liquid-conveying PVC fiber reinforced soft pipes. This kind of pipe is characterized by innocuity, transparency, pressure resistance, pulling resistance, acid and alkali resistance, good-looking appearance, tenderness and handiness, durability, etc. So the final products of this line are widely used in conveying pipes for air, water, coal gas, oil and other liquid and gas.

This line consists of extruders, spraying water tanks, hauling-off units, fiber-winding units, Coiler, etc. And it features with reasonable configuration, special structure, easy operation, convenient maintenance, high continual production capacity, etc, so it gets warm welcome and trust from clients.



Specifications:



Main Technical Parameters

MODEL

PVCG-110

PVCG-160

PVCG-250

PVCG-315

PVCG-400

PVCG-630

MATCHED EXTRUDER

SJZ51/105

SJZ65/132

SJZ65/132

SJZ80/156

SJZ80/156

SJG92/188

OD RANGE(mm)

50-110

50-160

75- 250

110-315

200-400

315-630

LENGTH OF VACUUM

CALIBRATOR TANK(mm)

6000

6000

6000

6000

6000

6000

HAUL SPEED(m/min)

0.6-6

0.5-5

0.4-4

0.3-3

0.2-2.5

0.2-1.5

INSTALLED POWER(kw)

67

85

95

125

135

255

TOTAL LENGTH9(mm)

17000

18000

20000

20500

28000

30000





Applications:



It is mainly used to produce PVC conduit pipe.



Achieving fast extruding and winding uniform reactive, can configure corresponding mould can also manufacture various specifications of soft special-shaped steel tubes.



The PVC Fiber Enhancing Soft Pipe , also called gridding pipe and snakeskin pipe which is mainly used to convey the middle pressure or corrosive gas and liquid , it is widely used in such areas as mechanical engineering , coal mine , petroleum , chemical industry , agriculture irrgation , civil application ( solar energy water heater , gas - jar ) , also it can be used in irrgating garden and lawn .





Competitive Advantage:



1 . First class pipe die was designed with many years experience

2 . energy saving
3 . good plasticity
4 .  advanced technology and better quality
