PVC Plastic Pipe Production Line For Drainage Pipe Extrusion

Chiny PVC Plastic Pipe Production Line For Drainage Pipe Extrusion dostawca

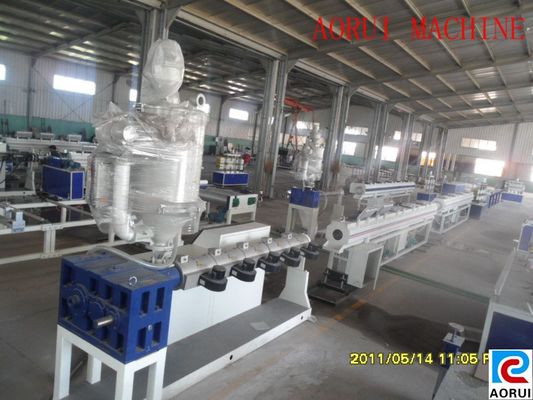

Duży Obraz :  PVC Plastic Pipe Production Line For Drainage Pipe Extrusion

Szczegóły Produktu:

Place of Origin: ShanDong China
Nazwa handlowa: AORUI
Orzecznictwo: CE UL CSA
Model Number: SJSZ65

Zapłata:

Minimum Order Quantity: 1 set
Cena: Negotiable
Packaging Details: Fumigationwood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per month
Contact Now
Szczegółowy opis produktu
Plastic Processed: PVC Type: Plastic Production Line, Plastic Extrusion Line
Screw Design: double screw Automatic Grade: Full Automatic
Application: Pipe Weight: depends
Place of Origin: Shandong , China (Mainland)

PVC Plastic Pipe Production Line For Drainage Pipe Extrusion ​







Quick detail:



1 . The main machine adopts screw specially used for polyolefin.

2 .  Equipped with auto vacuum charger and auto constant temperature dryer hopper .

3 .  it possesses features of high production, good plasticization and stable extruding.



Description:



The working process of PVC conduit pipe making machine:



High efficiency PP-R,HDPE single pipe and dual-strand pipe production line are widely used in the uptown apartment and village water supply and drainage.
Feature and advantages:

   This production line aim at the characteristic of the PP-R and HDPE pipes. This line adopts our own SJ series high efficiency single screw extruder equipped with the Siemens PLC controlling system. It can realize the whole line automatic controlling of high capacity , stable extruding with the suitable changing of different units could realize the production job of PE-RT,PEX ,PB pipe.



Specifications:



Main Technical Parameters

MODEL

PVCG-110

PVCG-160

PVCG-250

PVCG-315

PVCG-400

PVCG-630

MATCHED EXTRUDER

SJZ51/105

SJZ65/132

SJZ65/132

SJZ80/156

SJZ80/156

SJG92/188

OD RANGE(mm)

50-110

50-160

75- 250

110-315

200-400

315-630

LENGTH OF VACUUM

CALIBRATOR TANK(mm)

6000

6000

6000

6000

6000

6000

HAUL SPEED(m/min)

0.6-6

0.5-5

0.4-4

0.3-3

0.2-2.5

0.2-1.5

INSTALLED POWER(kw)

67

85

95

125

135

255

TOTAL LENGTH9(mm)

17000

18000

20000

20500

28000

30000





Applications:



It is mainly used to produce PVC conduit pipe.



The PVC Fiber Enhancing Soft Pipe , also called gridding pipe and snakeskin pipe which is mainly used to convey the middle pressure or corrosive gas and liquid , it is widely used in such areas as mechanical engineering , coal mine , petroleum , chemical industry , agriculture irrgation , civil application ( solar energy water heater , gas - jar ) , also it can be used in irrgating garden and lawn .





Competitive Advantage:



1 . First class pipe die was designed with many years experience

2 .  Perfert twin pipe vacuum sizing system ;

3 . Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device ;

4 .  advanced technology and better quality
