Plastic Extrusion Equipment / Corrugated Pipe Extruder Machinery for Washing

dobra jakość Linia wytłaczania rur z tworzyw sztucznych na sprzedaż
dobra jakość Linia wytłaczania rur z tworzyw sztucznych na sprzedaż
This machine is very good , and the after-saes service is good. The pvc board machine is easy to operate and the output is stable

—— Nancy

The pvc board extrusion machine is good quality , it is beautiful and the output is stable , this is a reliable company

—— Albert

Im Online Czat teraz

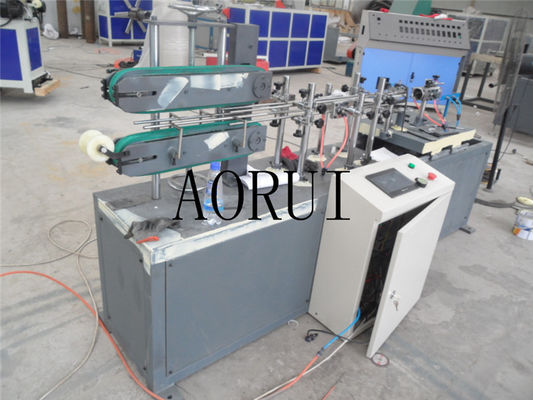

Plastic Extrusion Equipment / Corrugated Pipe Extruder Machinery for Washing

Chiny Plastic Extrusion Equipment / Corrugated Pipe Extruder Machinery for Washing dostawca
Plastic Extrusion Equipment / Corrugated Pipe Extruder Machinery for Washing dostawca Plastic Extrusion Equipment / Corrugated Pipe Extruder Machinery for Washing dostawca

Duży Obraz :  Plastic Extrusion Equipment / Corrugated Pipe Extruder Machinery for Washing

Szczegóły Produktu:

Place of Origin: ShanDong China
Nazwa handlowa: AORUI
Orzecznictwo: CE
Model Number: SJ65

Zapłata:

Minimum Order Quantity: 1 set
Cena: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter
Contact Now
Szczegółowy opis produktu
certificate: CE Power: 11-125KW
Capacity: 300kg/h Type: Plastic Production Line, Plastic Extrusion Line
Screw Design: Single Screw Automatic Grade: Full Automatic
product type: corrugated Pipe



Extension Corrugated Plastic Pipe Extrusion Line for Washing , Corrugated Pipe Extruder





Quick detail:



1. agriculture garden project: farmland, fruit tea, as well as forest calandria.
2. roadworks: as railway, highway infiltration, drainage

3. municipal engineering: for drainage, sewage.







Description:





1. PP/PE/PA/PVC/EVA production line canbe used to produce single-wall corrugated pipes.



2. Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc. They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.

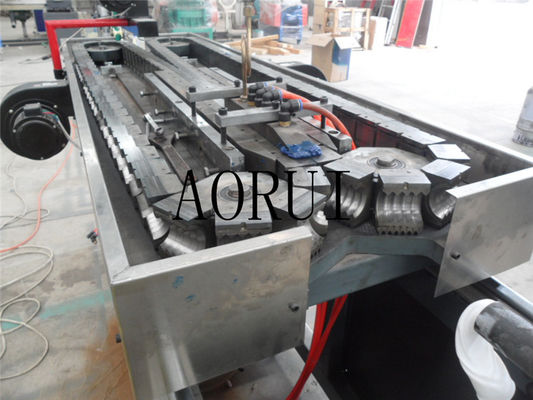

3. Plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall. These corrugated pipes are especially used as wires of the up-market cars.









Specifications:



Diameter Scope

4.5-9

9-32

32-50

Main Extruder

SJ-30

SJ-45

SJ-65

L/D

30:1

30:1

30:1

Output kg/h

10

40

80

Main Motor Power kw

4

11

18.5

Corrugator Power kw

1.1

1.5

1.5

Mould Block Pairs

42

44

44

Cooling Type

Water and air cooling

Linear Speed (m/min)

6-10

8-12

8-15

Counting Type

Sensing counting

Winding Type

Automatic/Manual





Applications:



1. The PVC, PE single wall corrugated pipe production line shall be used to produce small diameter PVC, PP and PE single wall corrugated pipes.
2. Corrugated pipes with smooth inside and outside surfaces, and even ripple are extruded once at a time.
3. End produces can be used as wires and cable passing pipes, washing machine drain pipes, dust collector pipes and ventiducts.

3) APPLICATION:They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.









Competitive Advantage:



1. provide all the machines for the complete production according to customer's requirements.

2. provide complete service for factory layout and other informations to help customer to build

the factory.

3. provide the raw material to the customer if you need
